WAM-V® 22

Expanding Boundaries in Marine Data Collection

The WAM-V® 22 USV (Unmanned Surface Vehicle) takes marine data collection to the next level. As part of the WAM-V® series, this innovative vessel uses advanced suspension technology to enhance seagoing performance, providing an exceptionally stable platform for accurate and high-quality data acquisition.

Powerful Performance for Large-Scale Marine Missions

Designed for larger marine data projects, the WAM-V® 22 excels as both a primary survey vehicle and a force multiplier alongside other vessels. Its articulating suspension system and compliant hulls minimize payload movement, ensuring data accuracy under diverse conditions. With its compact design, lightweight structure, and shallow draft, the WAM-V® 22 can navigate a wide range of environments—from the open ocean to shallow, sensitive areas—delivering outstanding versatility.

Deployment of the WAM-V® 22 is streamlined for efficiency. It can be quickly assembled and launched by two people from shore, a vessel deck, or by trailer, making it ideal for time-sensitive operations and maximizing operational range.

Specifications

Length

23 ft (7.1 m)

Beam

12 ft (3.7 m)

Beam (Folded)

8.6 ft (2.6 m)

Draft

22 in (0.56 m)

Speed

Burst up to 20 kn

Weight

2500 lbs (1134 kg) lightship

Endurance

Up to 72 hrs @ 8 kn

Payload

600 lbs (270 kg)

Fuel Capacity

88 gallons (333 L)

Propulsion

2x 30 hp gasoline

Operable Sea State

5

Standard Equipment
  • GPS waypoint navigation
  • Rugged GPS/INS
  • Charging system
  • MARCODE
  • Short range radio
  • Encrypted wireless network
  • ROCS
  • ROBO-HELM
  • 180° FOV camera
  • Navigation lights
Optional Equipment
  • Mobile operator control unit
  • Retractable sensor mount
  • Multi-beam sonar
  • Sub-bottom profiler
  • AIS transceiver
  • Intermodal freight shipping container
  • Side-scan sonar
  • On-board survey workstation
  • UV protective cover
  • Custom trailer Anemometer

We’re here to answer your questions.

Contact Us

WAM-V® Applications

Defense and Intelligence

Advanced maritime solutions that are crucial for defense and intelligence operations. Our state-of-the-art Maritime Domain Awareness Solution delivers unparalleled capabilities in key strategic areas.

Hydrographic Applications

We provide enhanced capabilities crucial for various applications such as nautical charting, coastal management, and marine resource management.

Environmental Monitoring and Conservation

Our technologies significantly contribute to various aspects of environmental protection, including monitoring of marine protected areas (MPAs) and combating illegal, unreported, and unregulated (IUU) fishing.

Research and Exploration

Our state-of-the-art Maritime Domain Awareness Solution, along with the PowerBuoy® and WAM-V® USVs, delivers unparalleled capabilities in key strategic areas.

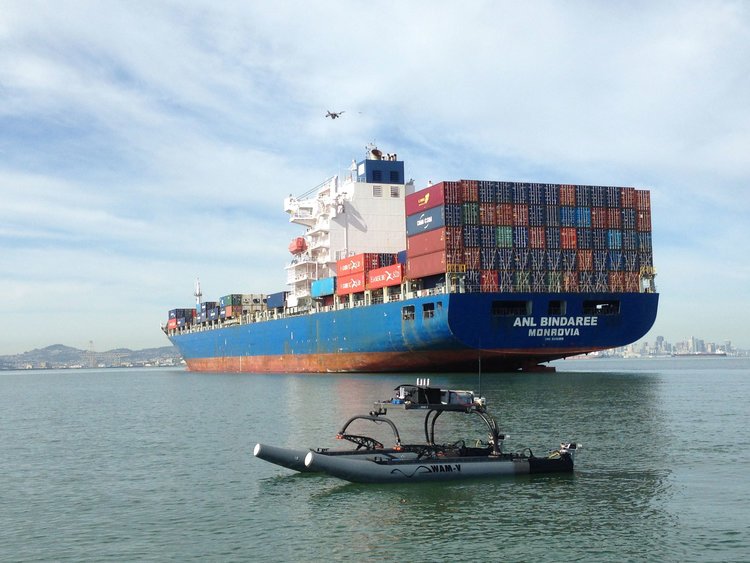

Inspection, Maintenance, and Repair

Our advanced capabilities for IMR activities, significantly improving the processes involved in maintaining and repairing maritime infrastructure such as offshore platforms, pipelines, and undersea cables.
Explore the WAM-V®

A New Horizon in Unmanned Surface Vehicles

Discover the transformative capabilities of the WAM-V® with Ocean Power Technologies. Contact us to explore how this groundbreaking USV’s can revolutionize your maritime operations.
